Mineral Powder Tank and Cement Silos

Mobile Phone

Application: storage of various bulk building materials such as cement and fly ash, the tank is equipped with a material level system, which can display the location and amount of the material.
Flow: 30-200T
Size: Φ2.279.1 m-Φ4.529m
Customized Mineral Powder Tank and Cement Silos
The design layout of the concrete batching plant will be customized and built according to your project volume and equipment needs. Let's expect all the miracles to happen.

Inquire now for the latest quote!

  • Product Description
  • Technical Parameter
  • Structure
  • Equipment Photo
  • Related Cases
  • Related Products

Product Description

The cement silo is one of the main configurations of the batching plant, and it is an indispensable part to ensure the efficient and stable operation of the batching plant. There are three main domestic cement silos, one-piece cement silo, flaky cement silo and horizontal cement silo.


  • The cement tank/silo has maximum volume alarming function by equipping a ruler for material depth.
  • The bin bottom can be equipped with arch-breaking air cushion and an electromagnetic valve to blow at regular intervals to prevent the cement from arching.
  • The vibration motor can be installed to optimize the structure of the tank. The large-diameter butterfly valve makes the material difficult to caking and ensures smooth feeding.
  • It adopts the mode of conveying before measuring, with a cement passby bin to make cement measurement more stable and accurate.

Technical Parameter

Mineral Powder Tank

SIZE Φ2.27*9.1 m Φ3.1*9.2 m

Cement Tank

TANK CAPACITY 50T 100T(Normal) 150T 200T
SIZE Φ3*12m Φ3*19.7m Φ3*24m Φ4.5*29m


The main components are

  • Dust removal system: The top of the cement silo is equipped with an electric dust removal device, which can effectively absorb suspended particles in the silo and reduce pollution to the surrounding environment.
  • Arch breaking device: The lower cone of the cement silo is equipped with an air blowing arch breaking device, which uses a small electromagnetic reversing valve located in the air control box to control the release of compressed air to break the cement and various powders to avoid powder accumulation. , causing blockage.
  • Material level device: The cement silo material level device can sense the storage height of the material in the silo.

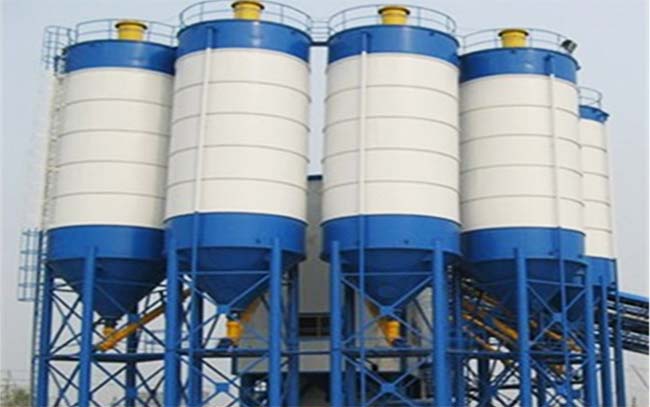

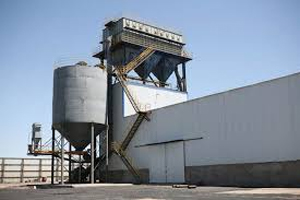

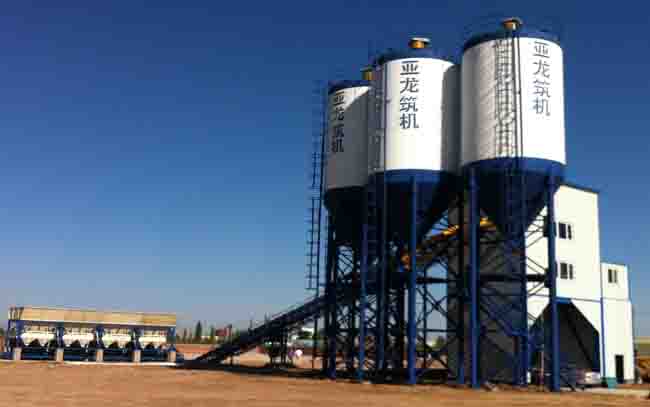

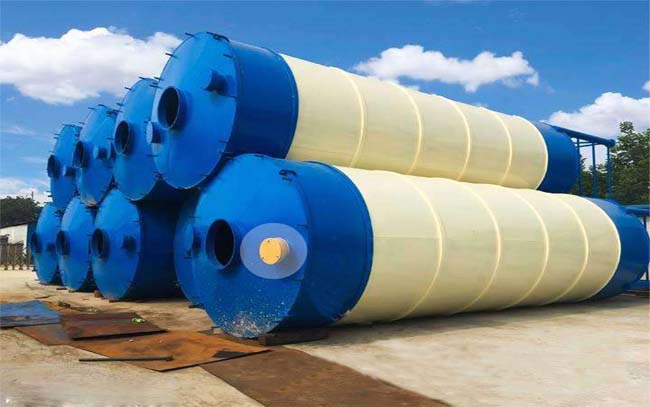

Equipment Photo
