Concrete Trailer Pumps

Mobile Phone

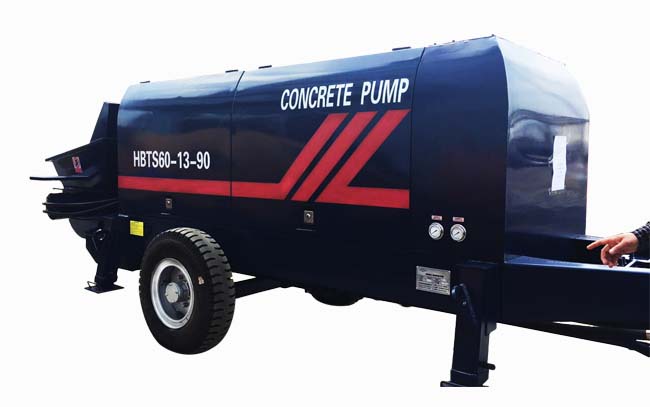

Diesel Trailer Concrete Pump
Models: HBT25S, HBT35S and HBT60S
Pumping volume (L/H): 40/26m3/h, 67/45m3/h, 84/45m3/h
Maximum horizontal conveying distance: 500-800m
Maximum vertical pumping distance: 120-200m

 Electric Trailer Concrete Pump
Models: HBTS40R, HBTS60R and HBTS80R
Pumping volume (L/H): 40m3/h, 60/36m3/h, 86/45m3/h
Maximum horizontal conveying distance: 500-800m
Maximum vertical pumping distance: 120-200M

  • Product Description
  • Advantages
  • Technical Parameters
  • Related Cases
  • Related Products

Product Description

Concrete trailer pump is a kind of concrete pumping machinery, which is mainly used for pouring concrete. It has a portable trailer base so it is easy to transfer between sites. Yalong Machinery supplies diesel engines and electric engines.

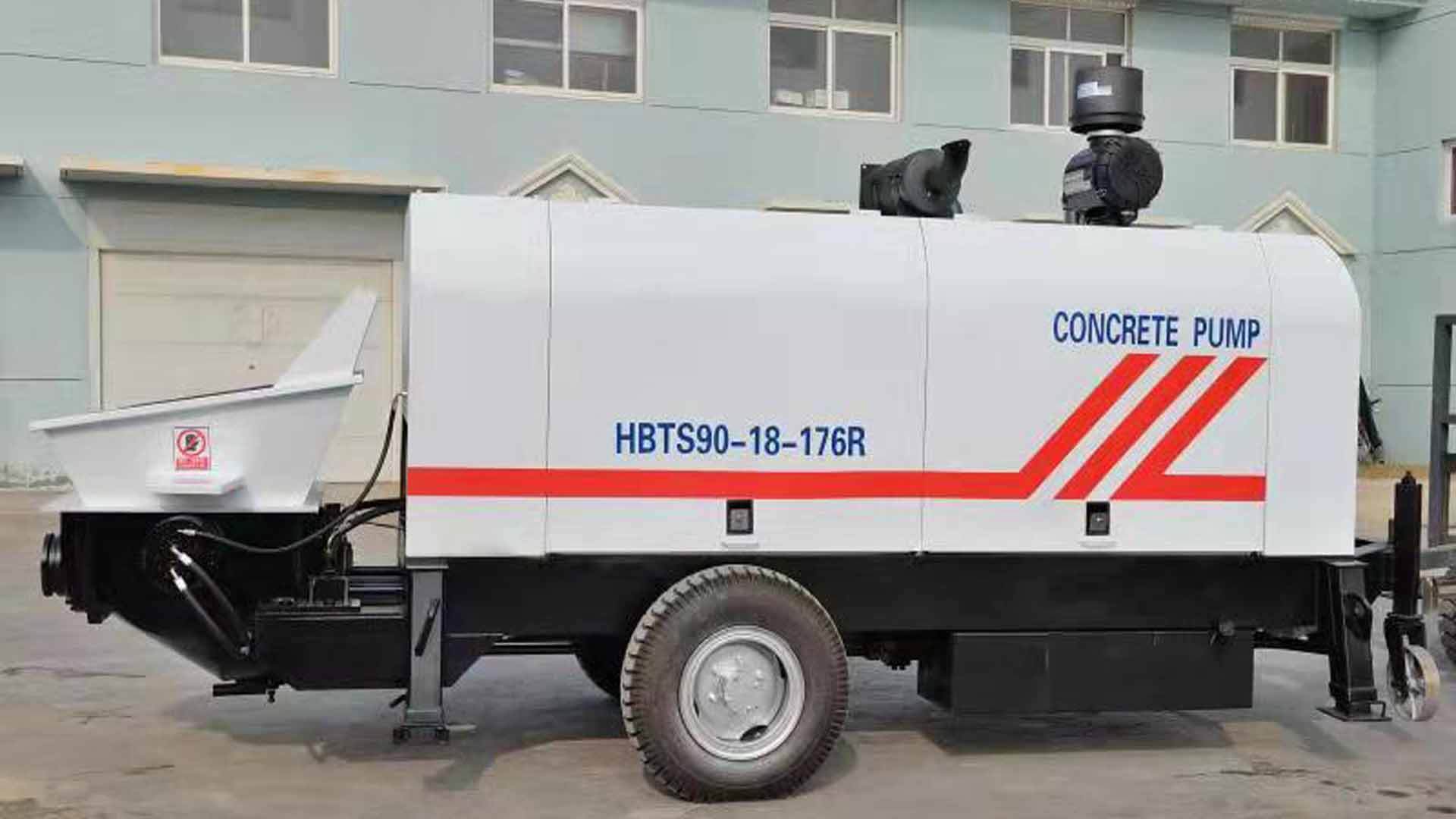

                                                  Electric Trailer Concrete Pump

Applications for Sold Concrete Trailer Pumps:
1. Concrete transportation for high-rise building floor pouring, foundation pouring and floor pouring.
2. Conveying plain concrete and fiber concrete for various construction projects.
3. Conveying green soil for ecological environment construction.
4. Pressure grouting for various foundation piles.

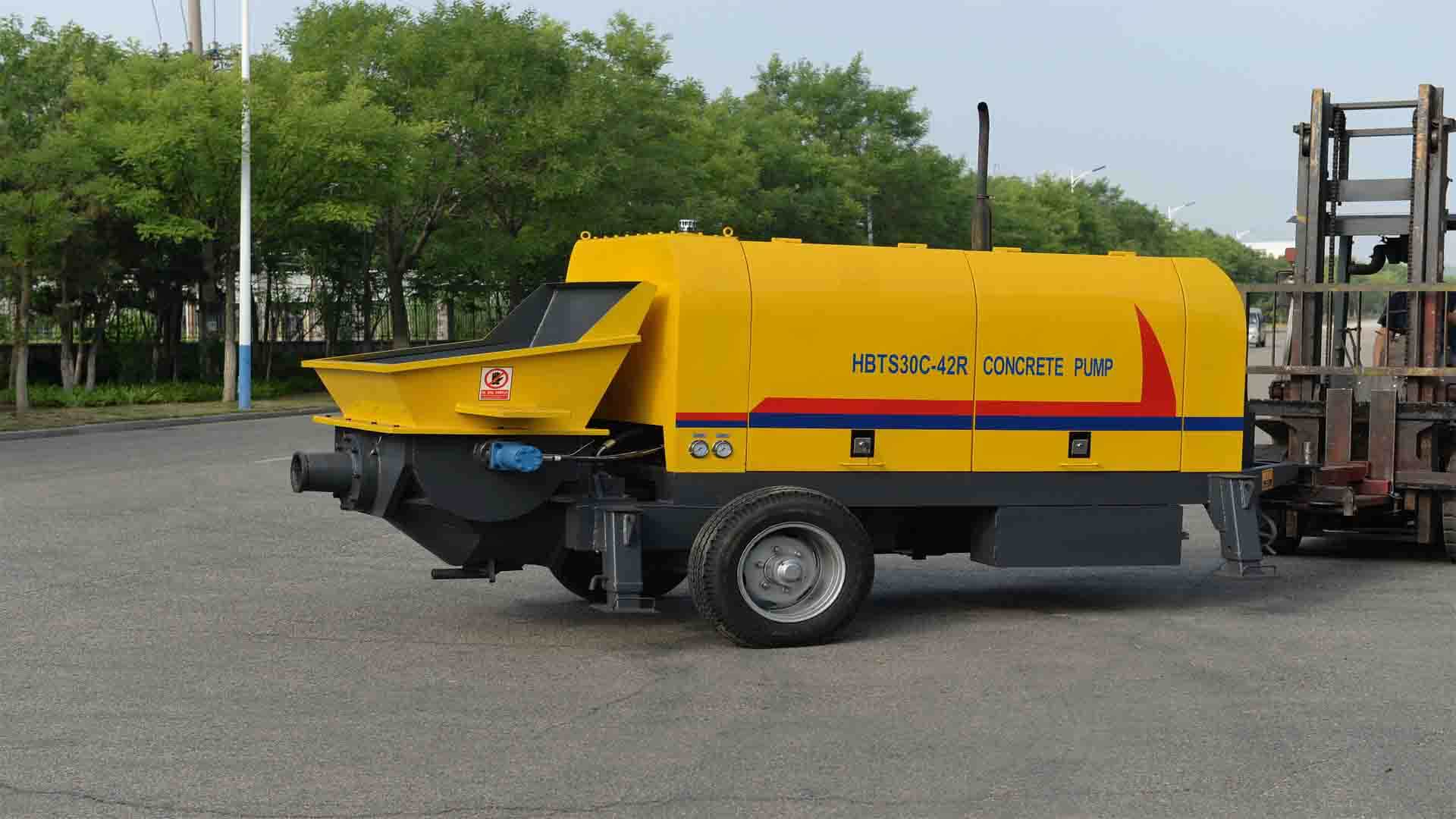

                                                                   Diesel Concrete Trailer Pump

Work Process
The working process of the trailer concrete pump is the process of concrete piston suction and push. As we all know, the trailer concrete pump for sale consists of a mechanical system, a hydraulic system and an electrical system. The pumping system is the execution system of the whole machine, which is mainly composed of mechanical part, hydraulic part and electrical part.
In the beginning, there was a concrete mixer truck that unloaded the ready-mixed concrete into the hopper of the trailer pump. The hopper will then first filter the unqualified large concrete particles and use hydraulic pressure to transport the standard concrete mix through several meters of pipes to the location.


Advantages of Trailer Concrete Pumps for sale
1. Equipped with advanced S-pipe reversing valve, the outlet pressure is high, which can meet the long-distance transportation of concrete.
2. The main oil pump adopts high-quality constant power variable cylinder pump to ensure high system pressure, high efficiency and stable performance.
3. The S-pipe valve is equipped with a floating wear cup, which can automatically repair wear.
4. The glass plant and cutting ring are made of cemented carbide and have a long service life.
5. The concrete drag pump mixing system is equipped with a low-speed and high-torque hydraulic motor, which has strong power and ensures high efficiency.
6. The hydraulic system adopts double pump and double return system, which has the advantages of stable and fast reversing
The hydraulic oil cooling system adopts advanced air cooling device, which is convenient and environmentally friendly.
7. The trailer pump has an anti-pump function to minimize pipe blockage.
8. With high quality, low price and fast shipping.

Technical Parameters

Electric trailer concrete pump

Items Unit HBT-25s/1008 HBT-25SG/1014 HBT-35S/1011
Max.Theoretical Conveying Capacity m3/h 25 16/25 23/35
Max.Theoretical Pumping Pressure MPa 8 14/9 11/6.8
Max.Theoretical Vertical Conveying Distance m 110 200 160
Max.Theoretical Horizontal Conveying Distance m 400 750 600
Max.Aggregate Diameter mm 30 30 30
Slump cm 12-23 12-23 12-23
Conveying Pipe Inner Diameter mm 100A/80A 100A/80A 100A/80A
Conveying Cylinder Quantity pcs 2 2 2
Concrete Cylinder Bore*Stroke mm 140*1000 140*1000 140*1000
Hydraulic Oil Tank Volume L 220 240 240
Feeding Height mm 1100 1100 1100
Hopper Capacity m3 0.35 0.35 0.35
Main Motor Power kw 37 37 45
OverallDimension(L*W*H) mm 4650×1500×1650 4650×1500×1650 4650×1500×1650

Diesel concrete trailer pump

Items HBTS40-08-56R HBTS60-13-130R HBTS80-13-130R
Max.Theoretical Throughput(m3/h) 40 60 88
Max.Pumping Pressure(MPa) 8 13 13
Form of Distribution Valve S-pipe Valve S-pipe Valve S-pipe Valve
Conveying Cylinder Bore/Stroke(mm) 180×1200 200×1600 200×1800
Hopper Volume(m3) 0.5 0.68 0.68
The Diameterof Dischargeport(mm) 40 60/80 60/80
Engine Model Weichai Weichai Deutz Weichai Deutz 226B
Rated Power(kw) 56 130 130
Engine Cooling Water-cooled Diesel Engine Water-cooled Diesel Engine Water-cooled Diesel Engine
Hydraulic Tank Volume(L) 500 680 580
